TEE verification with Risc Zero

info

All the codebase used in the tutorial can be explored here

This guide will walk you through the process of verifying TEE proofs on zkVerify by wrapping them with Risc Zero. As per the current standards, most of the TEE proofs are first wrapped into a zkVM to generate a STARK proof, and then again wrapped into a groth16 proof to verify it onchain. But with zkVerify we don't need to wrap it to groth16 as zkVerify supports native Risc Zero STARK verification.

To start with we will create a new cargo project using the follwing command:

cargo new zkverify-tee-r0

After creating the project, open it with IDE of your choice. We will be importing all the required modules for our project. We will be using Automata's DCAP CLI project for all the required TEE verification functions. We will also use risc0-zkvm to create a client and generate a proof with the Bonsai proving service.

Next, open the cargo.toml file and replace it with the following:

[package]
name = "zkverify-tee-r0"
version = "0.1.0"
edition = "2024"

[dependencies]
reqwest = { version = "0.11", features = ["json", "rustls-tls"] }
tokio = { version = "1", features = ["full"] }
serde = { version = "1", features = ["derive"] }
serde_json = "1"
dotenv = "0.15"
anyhow = "1"
hex = "0.4"
risc0-zkvm = "=2.1.0"
ciborium = "0.2.2"
dcap-rs = { git = "https://github.com/automata-network/dcap-rs.git" }
dcap-bonsai-cli = { git="https://github.com/automata-network/automata-dcap-zkvm-cli", rev="268b4115ad592d46c02f4ef7d49a6bae066d1592" }

info

You can apply for a Bonsai API Key here and for the relayer API key you can reach us out in discord by creating a ticket.

After adding all the required modules to the project, we will create a .env file in which we will store our Bonsai API details and Horizen's Relayer Service API key. Paste the following snippet and add your API details:

BONSAI_API_URL="<BONSAI_API_URL>"
BONSAI_API_KEY="<BONSAI_API_KEY>"
RISC0_PROVER="bonsai"
API_KEY="<RELAYER_API_KEY>"

Then create a new file named utils.rs inside the src folder. In this file we will define the verify_proof function which will call the relayer service for proof verification. First we will import all the required modules. You can paste the following code snippet:

use std::{env, fs, thread, time::Duration};
use anyhow::{Ok, Result};
use dotenv::dotenv;
use reqwest::Client;
use risc0_zkvm::Receipt;
use serde::Deserialize;

Now we will define a constant API_URL which will hold our relayer API URL. And the the verify_proof function, which will be an async function and will take the ZK receipt and image_id as the inputs. We will read the API_KEY from the env and then convert the Risc Zero proof receipt into the required hex format which zkVerify supports.

Then we will create the submit_params object with all the proof details required for verification. Next, we make a POST request to submit-proof endpoint which will return the job-id and optimistic-verification status. If the optimistic-verification status is success then we will start polling the job-id till it's status is Finalized, which means that the ZK proof has been finalized on zkVerify chain.

pub async fn verify_proof(receipt: Receipt, image_id: String) -> Result<()>{

    dotenv().ok();
    let api_key = env::var("API_KEY")?;

    let mut bin_receipt = Vec::new();
    ciborium::into_writer(&receipt, &mut bin_receipt).unwrap();
    let proof_hex = hex::encode(&bin_receipt);
    let public_inputs_hex = hex::encode(&receipt.journal.bytes);

    let client = Client::new();

    let submit_params = serde_json::json!({
        "proofType": "risc0",
        "vkRegistered": false,
        "chainId": 11155111,
        "proofOptions": {
            "version": "V2_1"
        },
        "proofData": {
            "proof": "0x".to_string() + &proof_hex,
            "publicSignals": "0x".to_string() + &public_inputs_hex,
            "vk": image_id
        }
    });

    let response = client
        .post(format!("{}/submit-proof/{}", API_URL, api_key))
        .json(&submit_params)
        .send()
        .await?;

    let submit_response: serde_json::Value = response.json().await?;
    println!("{:#?}", submit_response);

    if submit_response["optimisticVerify"] != "success" {
        eprintln!("Proof verification failed.");
        return Ok(());
    }

    let job_id = submit_response["jobId"].as_str().unwrap();

    loop {
        let job_status = client
            .get(format!("{}/job-status/{}/{}", API_URL, api_key, job_id))
            .send()
            .await?
            .json::<serde_json::Value>()
            .await?;

        let status = job_status["status"].as_str().unwrap_or("Unknown");

        if status == "Finalized" || status == "Aggregated" || status == "AggregationPending"{
            println!("Job Finalized successfully");
            println!("{:?}", job_status);
            break;
        } else {
            println!("Job status: {}", status);
            println!("Waiting for job to finalized...");
            thread::sleep(Duration::from_secs(5));
        }
    }

    Ok(())
}

Now let's dive to create the main logic for our application. We don't need to write a zkVM program, because we will be using Automata's DCAP CLI project which already contains all the zkVM programs needed for the wrapping of the TEE attestation.

Open the main.rs file, and import alll the following modules:

use std::{fs::read_to_string, path::PathBuf};
use anyhow::Result;
use dcap_bonsai_cli::chain::{
    pccs::{
        enclave_id::{get_enclave_identity, EnclaveIdType},
        fmspc_tcb::get_tcb_info,
        pcs::{get_certificate_by_id, IPCSDao::CA},
    },
};
use dcap_bonsai_cli::code::DCAP_GUEST_ELF;
use dcap_bonsai_cli::collaterals::Collaterals;
use dcap_bonsai_cli::constants::*;
use dcap_bonsai_cli::parser::get_pck_fmspc_and_issuer;
use dcap_bonsai_cli::remove_prefix_if_found;
use dotenv::dotenv;
use risc0_zkvm::{compute_image_id, default_prover, ExecutorEnv, ProverOpts};

Next we will create some utility functions to verify our TEE attestation. These functions will be to read the hex quote from a file, serialize the collaterals, and to generate the input for our zkVM program. You can paste the following code snippet:

fn get_quote() -> Result<Vec<u8>> {

    let mut default_path = PathBuf::from(env!("CARGO_MANIFEST_DIR"));
    default_path.push("data/quote.hex");
    let quote_string = read_to_string(default_path).expect("Wrong data !!!");
    let processed = remove_prefix_if_found(&quote_string);
    let quote_hex = hex::decode(processed)?;
    Ok(quote_hex)

}


fn serialize_collaterals(collaterals: &Collaterals, pck_type: CA) -> Vec<u8> {
    // get the total length
    let total_length = 4 * 8
        + collaterals.tcb_info.len()
        + collaterals.qe_identity.len()
        + collaterals.root_ca.len()
        + collaterals.tcb_signing_ca.len()
        + collaterals.root_ca_crl.len()
        + collaterals.pck_crl.len();

    // create the vec and copy the data
    let mut data = Vec::with_capacity(total_length);
    data.extend_from_slice(&(collaterals.tcb_info.len() as u32).to_le_bytes());
    data.extend_from_slice(&(collaterals.qe_identity.len() as u32).to_le_bytes());
    data.extend_from_slice(&(collaterals.root_ca.len() as u32).to_le_bytes());
    data.extend_from_slice(&(collaterals.tcb_signing_ca.len() as u32).to_le_bytes());
    data.extend_from_slice(&(0 as u32).to_le_bytes()); // pck_certchain_len == 0
    data.extend_from_slice(&(collaterals.root_ca_crl.len() as u32).to_le_bytes());

    match pck_type {
        CA::PLATFORM => {
            data.extend_from_slice(&(0 as u32).to_le_bytes());
            data.extend_from_slice(&(collaterals.pck_crl.len() as u32).to_le_bytes());
        }
        CA::PROCESSOR => {
            data.extend_from_slice(&(collaterals.pck_crl.len() as u32).to_le_bytes());
            data.extend_from_slice(&(0 as u32).to_le_bytes());
        }
        _ => unreachable!(),
    }

    // collateral should only hold one PCK CRL

    data.extend_from_slice(&collaterals.tcb_info);
    data.extend_from_slice(&collaterals.qe_identity);
    data.extend_from_slice(&collaterals.root_ca);
    data.extend_from_slice(&collaterals.tcb_signing_ca);
    data.extend_from_slice(&collaterals.root_ca_crl);
    data.extend_from_slice(&collaterals.pck_crl);

    data
}

fn generate_input(quote: &[u8], collaterals: &[u8]) -> Vec<u8> {
    // get current time in seconds since epoch
    let current_time = std::time::SystemTime::now()
        .duration_since(std::time::UNIX_EPOCH)
        .unwrap()
        .as_secs();
    let current_time_bytes = current_time.to_le_bytes();

    let quote_len = quote.len() as u32;
    let intel_collaterals_bytes_len = collaterals.len() as u32;
    let total_len = 8 + 4 + 4 + quote_len + intel_collaterals_bytes_len;

    let mut input = Vec::with_capacity(total_len as usize);
    input.extend_from_slice(&current_time_bytes);
    input.extend_from_slice(&quote_len.to_le_bytes());
    input.extend_from_slice(&intel_collaterals_bytes_len.to_le_bytes());
    input.extend_from_slice(&quote);
    input.extend_from_slice(&collaterals);

    input.to_owned()
}

Finally, we will create our main function which will use all the utils functions to generate a Risc Zero proof for our TEE attestaion and verify it on zkVerify using the relayer service. This function will be a async function as there will be multiple async API calls involved in this process.

We will start by reading the quote from a file, then checking all the collaterals, serializing these collaterals and generating the zkVM input using the utility function we defined previously. After generating the input, we will create a DefaultProver which will connect to the Bonsai server to generate our ZK proof.

We will also define the required proof type as &ProverOpts::succinct(). After generating the proof, we will use the verify_proof function we made previously to send our Risc Zero proof for verification to zkVerify. You can just copy this code snippet for your main function:

#[tokio::main]
async fn main() -> Result<()>{
    dotenv().ok();

    let quote = get_quote().expect("Failed to read quote");

    // Step 1: Determine quote version and TEE type
    let quote_version = u16::from_le_bytes([quote[0], quote[1]]);
    let tee_type = u32::from_le_bytes([quote[4], quote[5], quote[6], quote[7]]);

    println!("Quote version: {}", quote_version);
    println!("TEE Type: {}", tee_type);

    if quote_version < 3 || quote_version > 4 {
        panic!("Unsupported quote version");
    }

    if tee_type != SGX_TEE_TYPE && tee_type != TDX_TEE_TYPE {
        panic!("Unsupported tee type");
    }

    // Step 2: Load collaterals
    println!("Quote read successfully. Begin fetching collaterals from the on-chain PCCS");

    let (root_ca, root_ca_crl) = get_certificate_by_id(CA::ROOT).await?;
    if root_ca.is_empty() || root_ca_crl.is_empty() {
        panic!("Intel SGX Root CA is missing");
    } else {
        println!("Fetched Intel SGX RootCA and CRL");
    }

    let (fmspc, pck_type, pck_issuer) =
        get_pck_fmspc_and_issuer(&quote, quote_version, tee_type);

    let tcb_type: u8;
    if tee_type == TDX_TEE_TYPE {
        tcb_type = 1;
    } else {
        tcb_type = 0;
    }
    let tcb_version: u32;
    if quote_version < 4 {
        tcb_version = 2
    } else {
        tcb_version = 3
    }
    let tcb_info = get_tcb_info(tcb_type, fmspc.as_str(), tcb_version).await?;

    println!("Fetched TCBInfo JSON for FMSPC: {}", fmspc);

    let qe_id_type: EnclaveIdType;
    if tee_type == TDX_TEE_TYPE {
        qe_id_type = EnclaveIdType::TDQE
    } else {
        qe_id_type = EnclaveIdType::QE
    }
    let qe_identity = get_enclave_identity(qe_id_type, quote_version as u32).await?;
    println!("Fetched QEIdentity JSON");

    let (signing_ca, _) = get_certificate_by_id(CA::SIGNING).await?;
    if signing_ca.is_empty() {
        panic!("Intel TCB Signing CA is missing");
    } else {
        println!("Fetched Intel TCB Signing CA");
    }

    let (_, pck_crl) = get_certificate_by_id(pck_type).await?;
    if pck_crl.is_empty() {
        panic!("CRL for {} is missing", pck_issuer);
    } else {
        println!("Fetched Intel PCK CRL for {}", pck_issuer);
    }

    let collaterals = Collaterals::new(
        tcb_info,
        qe_identity,
        root_ca,
        signing_ca,
        root_ca_crl,
        pck_crl,
    );
    let serialized_collaterals = serialize_collaterals(&collaterals, pck_type);

    // Step 3: Generate the input to upload to Bonsai
    let image_id = compute_image_id(DCAP_GUEST_ELF)?;
    println!("Image ID: {}", image_id.to_string());

    let input = generate_input(&quote, &serialized_collaterals);
    println!("All collaterals found! Begin uploading input to Bonsai...");

    // Sending proof request to Bonsai
    let env = ExecutorEnv::builder().write_slice(&input).build()?;
    let receipt = default_prover()
        .prove_with_opts(env, DCAP_GUEST_ELF, &ProverOpts::succinct())?
        .receipt;
    receipt.verify(image_id)?;

    utils::verify_proof(receipt, "0x".to_string()+&image_id.to_string()).await?;

    Ok(())
}

Now we will compile our project with release tag. Use the following command to build your project:

cargo build --release

To generate a ZK proof, you would need to pass the TEE quote as an input. Create a new folder named data and the a new file named quote.hex inside this folder. And then copy paste the data in this file to the quote.hex file you created.

Next load your .env file and run the project to generate ZK proofs. Use the following command to start your project:

source .env

./target/release/zkverify-tee-r0

After running the program, you will get an output similar to:

Quote version: 4
TEE Type: 129
Quote read successfully. Begin fetching collaterals from the on-chain PCCS
Fetched Intel SGX RootCA and CRL
Fetched TCBInfo JSON for FMSPC: 90c06f000000
Fetched QEIdentity JSON
Fetched Intel TCB Signing CA
Fetched Intel PCK CRL for Intel SGX PCK Platform CA
Image ID: 4cf071b3cc25d73e77f430b65f5700dd53522dacc21c1bfc0862b2e46fda3584
All collaterals found! Begin uploading input to Bonsai...
Object {
    "jobId": String("186823a1-61b8-11f0-8eb5-b2e0eb476089"),
    "optimisticVerify": String("success"),
}
Job status: Submitted
Waiting for job to finalized...
Job status: IncludedInBlock
Waiting for job to finalized...
Job Finalized successfully
Object {"aggregationId": Number(49713), "blockHash": String("0x495ee5f44fa64d39d115c182445c0afe350d0a79be4ec65ddba80a4dcd6d747e"), "chainId": Number(11155111), "createdAt": String("2025-07-15T20:12:56.000Z"), "jobId": String("186823a1-61b8-11f0-8eb5-b2e0eb476089"), "proofType": String("risc0"), "statement": String("0x73c324655562aa1b748cfddff41b172c34d9369cf44f14dc2860d2e5b453c3c1"), "status": String("AggregationPending"), "statusId": Number(5), "txHash": String("0xe4b9f9f94d8257f4d47e6a657c05e4a6bd74b52a9a7fca53eefff91fc547321b"), "updatedAt": String("2025-07-15T20:13:15.000Z")}

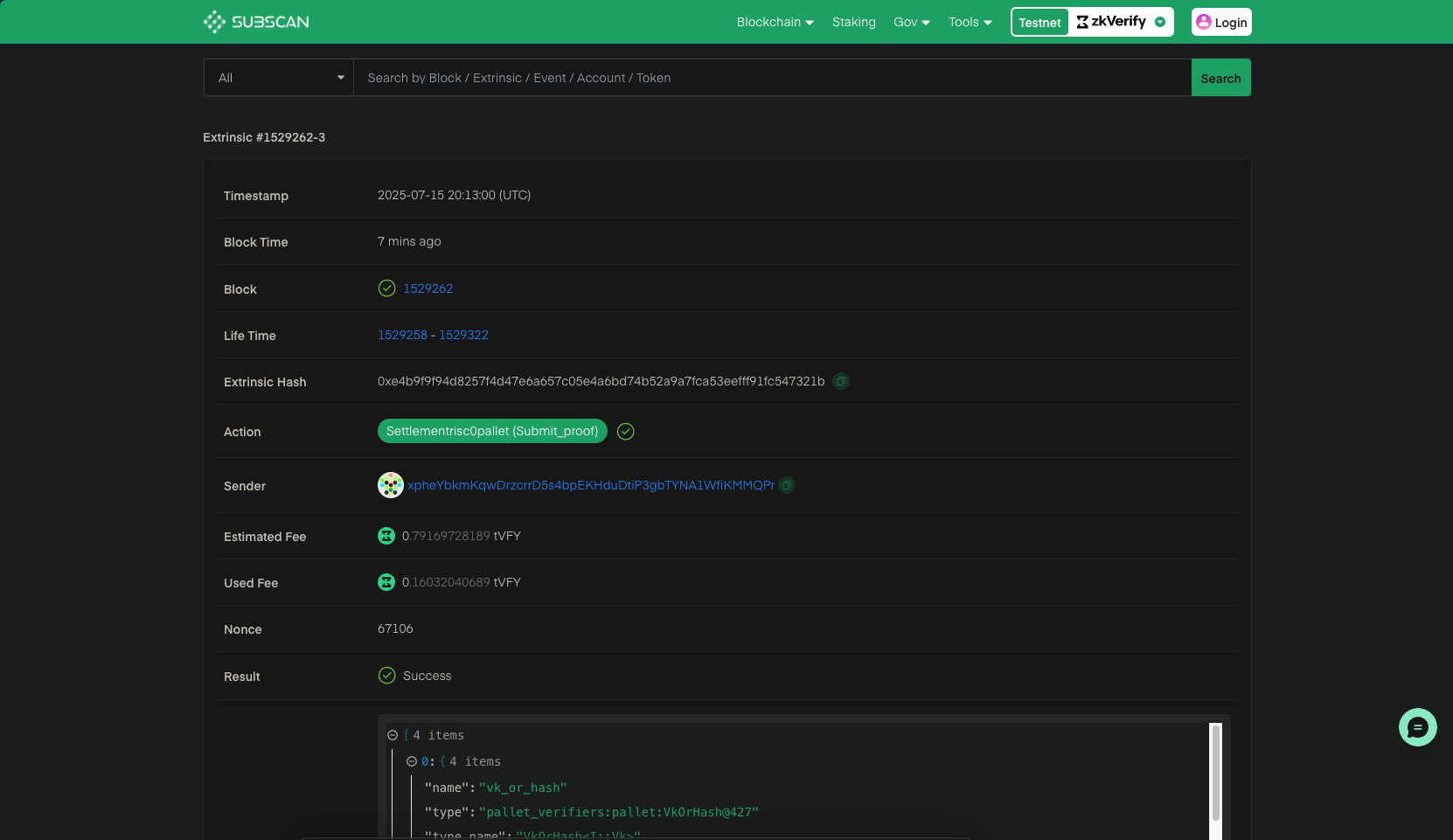

Using the txHash logged, you can check your verified proof on our zkVerify Explorer.
