使用 Risc Zero 验证 TEE

信息

本教程所用代码可在此处查看

本指南介绍如何通过 Risc Zero 包装 TEE 证明并在 zkVerify 上验证。通常 TEE 证明会先包入 zkVM 生成 STARK，再包装成 groth16 以便上链验证；而 zkVerify 原生支持 Risc Zero STARK，无需再包一层 groth16。

首先用下述命令创建新 cargo 项目：

cargo new zkverify-tee-r0

创建项目后，用任意 IDE 打开。我们将引入所需模块，使用 Automata 的 DCAP CLI 提供的 TEE 验证功能，并用 risc0-zkvm 创建客户端，借助 Bonsai 生成证明。

然后打开 cargo.toml 替换为以下内容：

[package]
name = "zkverify-tee-r0"
version = "0.1.0"
edition = "2024"

[dependencies]
reqwest = { version = "0.11", features = ["json", "rustls-tls"] }
tokio = { version = "1", features = ["full"] }
serde = { version = "1", features = ["derive"] }
serde_json = "1"
dotenv = "0.15"
anyhow = "1"
hex = "0.4"
risc0-zkvm = "=2.1.0"
ciborium = "0.2.2"
dcap-rs = { git = "https://github.com/automata-network/dcap-rs.git" }
dcap-bonsai-cli = { git="https://github.com/automata-network/automata-dcap-zkvm-cli", rev="268b4115ad592d46c02f4ef7d49a6bae066d1592" }

信息

Bonsai API Key 可在此申请。Kurier 的 API key 可在 kurier.xyz 注册账号后于用户面板生成。

添加依赖后，新建 .env 存放 Bonsai API 与 Kurier API key，粘贴并填入：

BONSAI_API_URL="<BONSAI_API_URL>"
BONSAI_API_KEY="<BONSAI_API_KEY>"
RISC0_PROVER="bonsai"
API_KEY="<KURIER_API_KEY>"

在 src 下新建 utils.rs，定义 verify_proof 调用 Kurier 验证证明。先引入所需模块，可直接粘贴：

use std::{env, fs, thread, time::Duration};
use anyhow::{Ok, Result};
use dotenv::dotenv;
use reqwest::Client;
use risc0_zkvm::Receipt;
use serde::Deserialize;

接着定义常量 API_URL（Kurier API URL）及异步函数 verify_proof，入参为 ZK receipt 与 image_id。从环境读取 API_KEY，并把 Risc Zero proof receipt 转成 zkVerify 支持的 hex 格式。

然后构造含证明细节的 submit_params，向 submit-proof 端点发起 POST，返回 job-id 与 optimistic-verification 状态。若状态为 success，则轮询 job-id 直至状态为 Finalized，表示 ZK 证明已在 zkVerify 链上最终确认。

pub async fn verify_proof(receipt: Receipt, image_id: String) -> Result<()>{

    dotenv().ok();
    let api_key = env::var("API_KEY")?;

    let mut bin_receipt = Vec::new();
    ciborium::into_writer(&receipt, &mut bin_receipt).unwrap();
    let proof_hex = hex::encode(&bin_receipt);
    let public_inputs_hex = hex::encode(&receipt.journal.bytes);

    let client = Client::new();

    let submit_params = serde_json::json!({
        "proofType": "risc0",
        "vkRegistered": false,
        "chainId": 11155111,
        "proofOptions": {
            "version": "V2_1"
        },
        "proofData": {
            "proof": "0x".to_string() + &proof_hex,
            "publicSignals": "0x".to_string() + &public_inputs_hex,
            "vk": image_id
        }
    });

    let response = client
        .post(format!("{}/submit-proof/{}", API_URL, api_key))
        .json(&submit_params)
        .send()
        .await?;

    let submit_response: serde_json::Value = response.json().await?;
    println!("{:#?}", submit_response);

    if submit_response["optimisticVerify"] != "success" {
        eprintln!("Proof verification failed.");
        return Ok(());
    }

    let job_id = submit_response["jobId"].as_str().unwrap();

    loop {
        let job_status = client
            .get(format!("{}/job-status/{}/{}", API_URL, api_key, job_id))
            .send()
            .await?
            .json::<serde_json::Value>()
            .await?;

        let status = job_status["status"].as_str().unwrap_or("Unknown");

        if status == "Finalized" || status == "Aggregated" || status == "AggregationPending"{
            println!("Job Finalized successfully");
            println!("{:?}", job_status);
            break;
        } else {
            println!("Job status: {}", status);
            println!("Waiting for job to finalized...");
            thread::sleep(Duration::from_secs(5));
        }
    }

    Ok(())
}

接下来编写应用的核心逻辑。无需自己写 zkVM 程序，因为 Automata 的 DCAP CLI 已包含封装 TEE 认证所需的 zkVM 程序。

打开 main.rs，引入以下模块：

use std::{fs::read_to_string, path::PathBuf};
use anyhow::Result;
use dcap_bonsai_cli::chain::{
    pccs::{
        enclave_id::{get_enclave_identity, EnclaveIdType},
        fmspc_tcb::get_tcb_info,
        pcs::{get_certificate_by_id, IPCSDao::CA},
    },
};
use dcap_bonsai_cli::code::DCAP_GUEST_ELF;
use dcap_bonsai_cli::collaterals::Collaterals;
use dcap_bonsai_cli::constants::*;
use dcap_bonsai_cli::parser::get_pck_fmspc_and_issuer;
use dcap_bonsai_cli::remove_prefix_if_found;
use dotenv::dotenv;
use risc0_zkvm::{compute_image_id, default_prover, ExecutorEnv, ProverOpts};

再编写一些辅助函数：从文件读取十六进制 quote、序列化 collaterals，并生成 zkVM 输入。可粘贴：

fn get_quote() -> Result<Vec<u8>> {

    let mut default_path = PathBuf::from(env!("CARGO_MANIFEST_DIR"));
    default_path.push("data/quote.hex");
    let quote_string = read_to_string(default_path).expect("Wrong data !!!");
    let processed = remove_prefix_if_found(&quote_string);
    let quote_hex = hex::decode(processed)?;
    Ok(quote_hex)

}


fn serialize_collaterals(collaterals: &Collaterals, pck_type: CA) -> Vec<u8> {
    // get the total length
    let total_length = 4 * 8
        + collaterals.tcb_info.len()
        + collaterals.qe_identity.len()
        + collaterals.root_ca.len()
        + collaterals.tcb_signing_ca.len()
        + collaterals.root_ca_crl.len()
        + collaterals.pck_crl.len();

    // create the vec and copy the data
    let mut data = Vec::with_capacity(total_length);
    data.extend_from_slice(&(collaterals.tcb_info.len() as u32).to_le_bytes());
    data.extend_from_slice(&(collaterals.qe_identity.len() as u32).to_le_bytes());
    data.extend_from_slice(&(collaterals.root_ca.len() as u32).to_le_bytes());
    data.extend_from_slice(&(collaterals.tcb_signing_ca.len() as u32).to_le_bytes());
    data.extend_from_slice(&(0 as u32).to_le_bytes()); // pck_certchain_len == 0
    data.extend_from_slice(&(collaterals.root_ca_crl.len() as u32).to_le_bytes());

    match pck_type {
        CA::PLATFORM => {
            data.extend_from_slice(&(0 as u32).to_le_bytes());
            data.extend_from_slice(&(collaterals.pck_crl.len() as u32).to_le_bytes());
        }
        CA::PROCESSOR => {
            data.extend_from_slice(&(collaterals.pck_crl.len() as u32).to_le_bytes());
            data.extend_from_slice(&(0 as u32).to_le_bytes());
        }
        _ => unreachable!(),
    }

    // collateral 仅包含一条 PCK CRL

    data.extend_from_slice(&collaterals.tcb_info);
    data.extend_from_slice(&collaterals.qe_identity);
    data.extend_from_slice(&collaterals.root_ca);
    data.extend_from_slice(&collaterals.tcb_signing_ca);
    data.extend_from_slice(&collaterals.root_ca_crl);
    data.extend_from_slice(&collaterals.pck_crl);

    data
}

fn generate_input(quote: &[u8], collaterals: &[u8]) -> Vec<u8> {
    // get current time in seconds since epoch
    let current_time = std::time::SystemTime::now()
        .duration_since(std::time::UNIX_EPOCH)
        .unwrap()
        .as_secs();
    let current_time_bytes = current_time.to_le_bytes();

    let quote_len = quote.len() as u32;
    let intel_collaterals_bytes_len = collaterals.len() as u32;
    let total_len = 8 + 4 + 4 + quote_len + intel_collaterals_bytes_len;

    let mut input = Vec::with_capacity(total_len as usize);
    input.extend_from_slice(&current_time_bytes);
    input.extend_from_slice(&quote_len.to_le_bytes());
    input.extend_from_slice(&intel_collaterals_bytes_len.to_le_bytes());
    input.extend_from_slice(&quote);
    input.extend_from_slice(&collaterals);

    input.to_owned()
}

最后创建 main，使用上述工具函数为 TEE 认证生成 Risc Zero 证明，并通过 Kurier 在 zkVerify 上验证。该函数为 async，因为会有多次异步 API 调用。

流程：从文件读取 quote，检查并序列化所有 collaterals，生成 zkVM 输入；然后创建 DefaultProver，连接 Bonsai 生成 ZK 证明。

将证明类型设为 &ProverOpts::succinct()。生成证明后，调用 verify_proof 将 Risc Zero 证明送到 zkVerify 验证。可直接复制以下 main：

#[tokio::main]
async fn main() -> Result<()>{
    dotenv().ok();

    let quote = get_quote().expect("Failed to read quote");

    // Step 1: Determine quote version and TEE type
    let quote_version = u16::from_le_bytes([quote[0], quote[1]]);
    let tee_type = u32::from_le_bytes([quote[4], quote[5], quote[6], quote[7]]);

    println!("Quote version: {}", quote_version);
    println!("TEE Type: {}", tee_type);

    if quote_version < 3 || quote_version > 4 {
        panic!("Unsupported quote version");
    }

    if tee_type != SGX_TEE_TYPE && tee_type != TDX_TEE_TYPE {
        panic!("Unsupported tee type");
    }

    // Step 2: Load collaterals
    println!("Quote read successfully. Begin fetching collaterals from the on-chain PCCS");

    let (root_ca, root_ca_crl) = get_certificate_by_id(CA::ROOT).await?;
    if root_ca.is_empty() || root_ca_crl.is_empty() {
        panic!("Intel SGX Root CA is missing");
    } else {
        println!("Fetched Intel SGX RootCA and CRL");
    }

    let (fmspc, pck_type, pck_issuer) =
        get_pck_fmspc_and_issuer(&quote, quote_version, tee_type);

    let tcb_type: u8;
    if tee_type == TDX_TEE_TYPE {
        tcb_type = 1;
    } else {
        tcb_type = 0;
    }
    let tcb_version: u32;
    if quote_version < 4 {
        tcb_version = 2
    } else {
        tcb_version = 3
    }
    let tcb_info = get_tcb_info(tcb_type, fmspc.as_str(), tcb_version).await?;

    println!("Fetched TCBInfo JSON for FMSPC: {}", fmspc);

    let qe_id_type: EnclaveIdType;
    if tee_type == TDX_TEE_TYPE {
        qe_id_type = EnclaveIdType::TDQE
    } else {
        qe_id_type = EnclaveIdType::QE
    }
    let qe_identity = get_enclave_identity(qe_id_type, quote_version as u32).await?;
    println!("Fetched QEIdentity JSON");

    let (signing_ca, _) = get_certificate_by_id(CA::SIGNING).await?;
    if signing_ca.is_empty() {
        panic!("Intel TCB Signing CA is missing");
    } else {
        println!("Fetched Intel TCB Signing CA");
    }

    let (_, pck_crl) = get_certificate_by_id(pck_type).await?;
    if pck_crl.is_empty() {
        panic!("CRL for {} is missing", pck_issuer);
    } else {
        println!("Fetched Intel PCK CRL for {}", pck_issuer);
    }

    let collaterals = Collaterals::new(
        tcb_info,
        qe_identity,
        root_ca,
        signing_ca,
        root_ca_crl,
        pck_crl,
    );
    let serialized_collaterals = serialize_collaterals(&collaterals, pck_type);

    // Step 3: 生成上传到 Bonsai 的输入
    let image_id = compute_image_id(DCAP_GUEST_ELF)?;
    println!("Image ID: {}", image_id.to_string());

    let input = generate_input(&quote, &serialized_collaterals);
    println!("All collaterals found! Begin uploading input to Bonsai...");

    // 向 Bonsai 发送证明请求
    let env = ExecutorEnv::builder().write_slice(&input).build()?;
    let receipt = default_prover()
        .prove_with_opts(env, DCAP_GUEST_ELF, &ProverOpts::succinct())?
        .receipt;
    receipt.verify(image_id)?;

    utils::verify_proof(receipt, "0x".to_string()+&image_id.to_string()).await?;

    Ok(())
}

接下来以 release 构建项目：

cargo build --release

生成 ZK 证明时需提供 TEE quote 作为输入。创建 data 目录与 quote.hex 文件，将此文件内容复制进去。

然后加载 .env 并运行项目生成 ZK 证明：

source .env

./target/release/zkverify-tee-r0

运行程序后会看到类似输出：

Quote version: 4
TEE Type: 129
Quote read successfully. Begin fetching collaterals from the on-chain PCCS
Fetched Intel SGX RootCA and CRL
Fetched TCBInfo JSON for FMSPC: 90c06f000000
Fetched QEIdentity JSON
Fetched Intel TCB Signing CA
Fetched Intel PCK CRL for Intel SGX PCK Platform CA
Image ID: 4cf071b3cc25d73e77f430b65f5700dd53522dacc21c1bfc0862b2e46fda3584
All collaterals found! Begin uploading input to Bonsai...
Object {
    "jobId": String("186823a1-61b8-11f0-8eb5-b2e0eb476089"),
    "optimisticVerify": String("success"),
}
Job status: Submitted
Waiting for job to finalized...
Job status: IncludedInBlock
Waiting for job to finalized...
Job Finalized successfully
Object {"aggregationId": Number(49713), "blockHash": String("0x495ee5f44fa64d39d115c182445c0afe350d0a79be4ec65ddba80a4dcd6d747e"), "chainId": Number(11155111), "createdAt": String("2025-07-15T20:12:56.000Z"), "jobId": String("186823a1-61b8-11f0-8eb5-b2e0eb476089"), "proofType": String("risc0"), "statement": String("0x73c324655562aa1b748cfddff41b172c34d9369cf44f14dc2860d2e5b453c3c1"), "status": String("AggregationPending"), "statusId": Number(5), "txHash": String("0xe4b9f9f94d8257f4d47e6a657c05e4a6bd74b52a9a7fca53eefff91fc547321b"), "updatedAt": String("2025-07-15T20:13:15.000Z")}

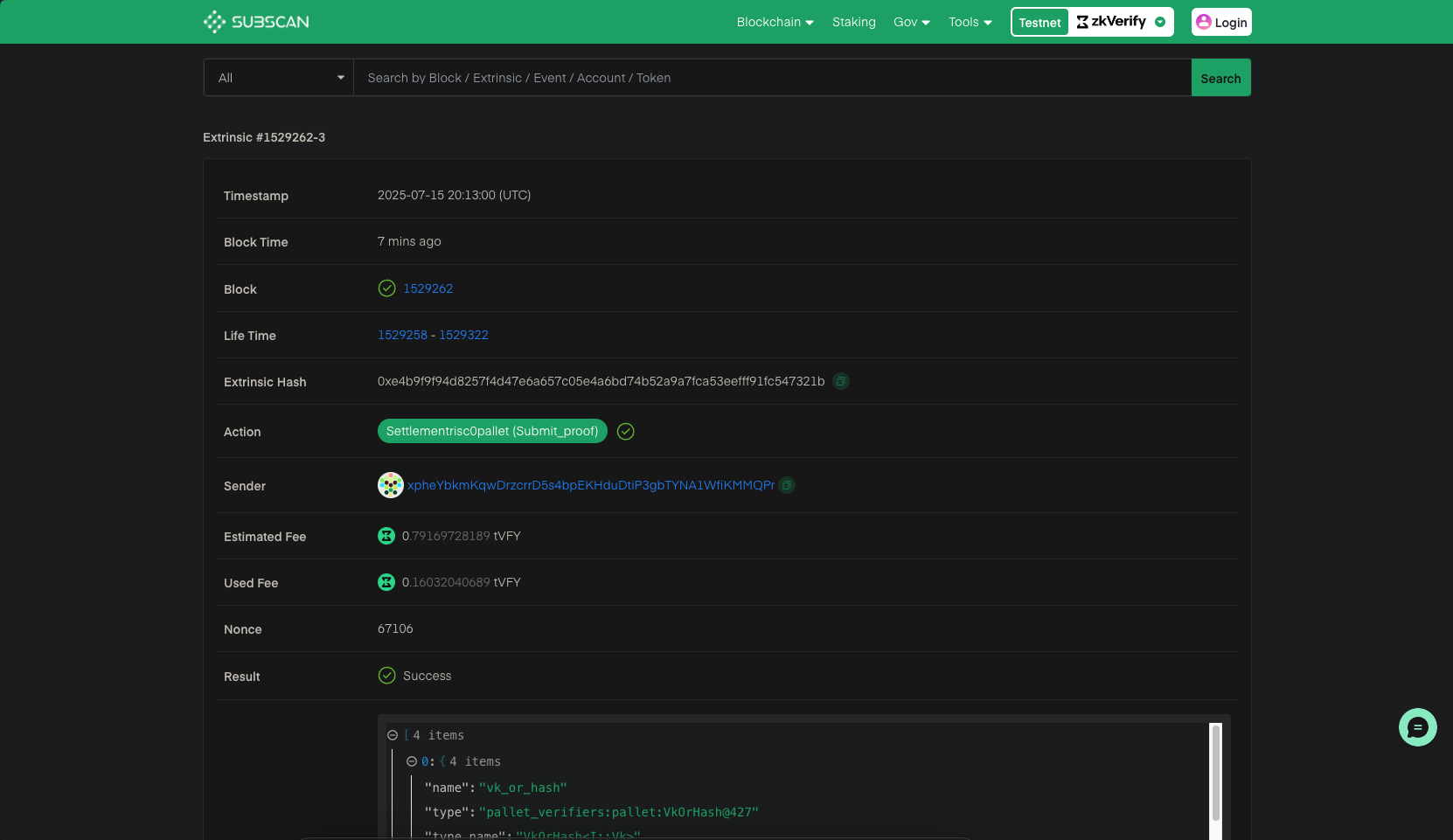

可用日志中的 txHash 在 zkVerify Explorer 查看已验证的证明。
