使用 Noir 的前端证明

信息

教程代码可在此处查看

本指南演示如何开发一款由 Noir 支持前端生成证明、并通过 Kurier 验证的 NextJS 应用。我们将从零编写简单 Noir 电路，再用 bbjs 在客户端生成证明。

首先用命令创建 NextJS 应用：

npx create-next-app@latest

创建过程中会遇到以下选项：

What is your project named? my-app
Would you like to use TypeScript? No / Yes # Select yes
Would you like to use ESLint? No / Yes # Select yes
Would you like to use Tailwind CSS? No / Yes # Select yes
Would you like your code inside a `src/` directory? No / Yes # Select yes
Would you like to use App Router? (recommended) No / Yes # Select no
Would you like to use Turbopack for `next dev`?  No / Yes # Select yes
Would you like to customize the import alias (`@/*` by default)? No / Yes # Select no
What import alias would you like configured? @/*

接着安装依赖 axios、@noir-lang/noir_js 与 @aztec/bb.js，先进入项目目录再执行 npm 安装：

cd your-project-name

npm i axios @noir-lang/[email protected] @aztec/[email protected]

在 IDE 中打开 NextJS 应用，查看目录结构。我们将在 public 目录中创建新的 Noir 项目，执行：

cd public

nargo new multiply

multiply 的 src 目录下有 main.nr。不深讲 DSL，仅提供必要代码：简单电路接收 x、y、z，约束 z === (x*y)。将文件内容替换为：

fn main(x: Field, y: Field, z: pub Field) {
    assert(z == x*y);
}

然后编译项目，进入 multiply 目录使用 nargo：

cd multiply

nargo compile

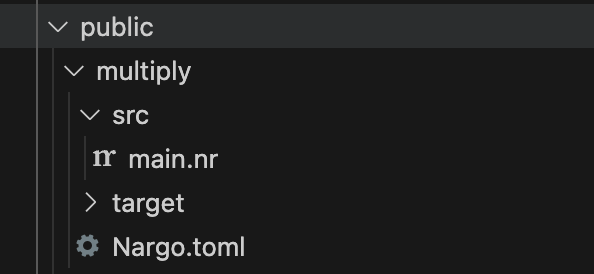

此时 public 目录应类似：

在项目根目录创建 .env 存放 Kurier API key，后续用于验证：

API_KEY = "向 Horizen Labs 获取的 API Key"

接下来在 NextJS 创建后端 API，接收证明产物并调用 Kurier 验证，供前端使用。于 api 子目录新建 kurier.ts。

首先引入 axios、bbjs、aztecjs 等依赖。然后创建处理函数，接受 POST 请求，读取请求体中的证明产物进行验证；声明 Kurier 的 API_URL。还需编写 concatenatePublicInputsAndProof() 将 Ultraplonk 证明格式化为 Kurier 所需格式。

在提交验证前需注册 verification key（每个 proof 类型一次即可，可降低验证成本）。注册完成后调用 Kurier API 提交 proof 并轮询状态；收到 IncludedInBlock 事件即向前端返回交易数据。可参考Kurier 教程。

import axios from "axios";
import { NextApiRequest, NextApiResponse } from "next";
import { Buffer } from "buffer";

const API_URL = "https://api-testnet.kurier.xyz/api/v1";

export default async function handler(req: NextApiRequest, res: NextApiResponse){

    if (req.method !== 'POST') {
      return res.status(405).json({ error: 'Method not allowed' });
    }
    try{

        const proofUint8 = new Uint8Array(Object.values(req.body.proof));

        const params = {
            "proofType": "ultraplonk",
            "vkRegistered": false,
            "proofOptions": {
                "numberOfPublicInputs": 1
            },
            "proofData": {
                "proof": Buffer.from(concatenatePublicInputsAndProof(req.body.publicInputs, proofUint8)).toString("base64"),
                "vk": req.body.vk
            }
        }

        const requestResponse = await axios.post(`${API_URL}/submit-proof/${process.env.API_KEY}`, params)
        console.log(requestResponse.data)

        if(requestResponse.data.optimisticVerify != "success"){
            console.error("Proof verification, check proof artifacts");
            return;
        }

        while(true){
            const jobStatusResponse = await axios.get(`${API_URL}/job-status/${process.env.API_KEY}/${requestResponse.data.jobId}`);
            if(jobStatusResponse.data.status === "IncludedInBlock"){
                console.log("Job Included in Block successfully");
                res.status(200).json(jobStatusResponse.data);
                return;
            }else{
                console.log("Job status: ", jobStatusResponse.data.status);
                console.log("Waiting for job to finalize...");
                await new Promise(resolve => setTimeout(resolve, 5000)); // Wait for 5 seconds before checking again
            }
        }
    }catch(error){
        console.log(error)
    }
}

function hexToUint8Array(hex: any) {
  if (hex.startsWith('0x')) hex = hex.slice(2);
  if (hex.length % 2 !== 0) hex = '0' + hex;

  const bytes = new Uint8Array(hex.length / 2);
  for (let i = 0; i < bytes.length; i++) {
    bytes[i] = parseInt(hex.substr(i * 2, 2), 16);
  }
  return bytes;
}

function concatenatePublicInputsAndProof(publicInputsHex: any, proofUint8: any) {
  const publicInputBytesArray = publicInputsHex.flatMap((hex: any) =>
    Array.from(hexToUint8Array(hex))
  );

  const publicInputBytes = new Uint8Array(publicInputBytesArray);

  console.log(publicInputBytes.length, proofUint8.length)
import axios from "axios";
import { NextApiRequest, NextApiResponse } from "next";
import { Buffer } from "buffer";
import fs from "fs";
import path from "path";

export default async function handler(req: NextApiRequest, res: NextApiResponse){

    if (req.method !== 'POST') {
      return res.status(405).json({ error: 'Method not allowed' });
    }
    try{

        const proofUint8 = new Uint8Array(Object.values(req.body.proof));

        if(fs.existsSync(path.join(process.cwd(), "public", "multiply", "vkey.json")) === false) {
          await registerVk(req.body.vk);
          await new Promise(resolve => setTimeout(resolve, 5000));
        }

        const vk = fs.readFileSync(
          path.join(
            process.cwd(),
            "public",
            "multiply",
            "vkey.json"
          ),
          "utf-8"
        );

        const params = {
            "proofType": "ultraplonk",
            "vkRegistered": true,
            "proofOptions": {
                "numberOfPublicInputs": 1
            },
            "proofData": {
                "proof": Buffer.from(concatenatePublicInputsAndProof(req.body.publicInputs, proofUint8)).toString("base64"),
                "vk": JSON.parse(vk).vkHash || JSON.parse(vk).meta.vkHash,
            }
        }

        const requestResponse = await axios.post(`${API_URL}/submit-proof/${process.env.API_KEY}`, params)
        console.log(requestResponse.data)

        if(requestResponse.data.optimisticVerify != "success"){
            console.error("Proof verification, check proof artifacts");
            return;
        }

        while(true){
          try{
            const jobStatusResponse = await axios.get(`${API_URL}/job-status/${process.env.API_KEY}/${requestResponse.data.jobId}`);
            console.log("Job Status: ", jobStatusResponse.data);
            if(jobStatusResponse.data.status === "IncludedInBlock"){
                console.log("Job Included in Block successfully");
                res.status(200).json(jobStatusResponse.data);
                return;
            }else{
                console.log("Job status: ", jobStatusResponse.data.status);
                console.log("Waiting for job to finalize...");
                await new Promise(resolve => setTimeout(resolve, 5000)); // Wait for 5 seconds before checking again
            }
          } catch (error: any) {
            if(error.response.status === 503){
              console.log("Service Unavailable, retrying...");
              await new Promise(resolve => setTimeout(resolve, 5000)); // Wait for 5 seconds before retrying
            }
          }
        }
    }catch(error){
        console.log(error)
    }
}

function hexToUint8Array(hex: any) {
  if (hex.startsWith('0x')) hex = hex.slice(2);
  if (hex.length % 2 !== 0) hex = '0' + hex;

  const bytes = new Uint8Array(hex.length / 2);
  for (let i = 0; i < bytes.length; i++) {
    bytes[i] = parseInt(hex.substr(i * 2, 2), 16);
  }
  return bytes;
}

function concatenatePublicInputsAndProof(publicInputsHex: any, proofUint8: any) {
  const publicInputBytesArray = publicInputsHex.flatMap((hex: any) =>
    Array.from(hexToUint8Array(hex))
  );

  const publicInputBytes = new Uint8Array(publicInputBytesArray);

  console.log(publicInputBytes.length, proofUint8.length)

  const newProof = new Uint8Array(publicInputBytes.length + proofUint8.length);
  newProof.set(publicInputBytes, 0);
  newProof.set(proofUint8, publicInputBytes.length);

  return newProof;
}

async function registerVk(vk: any){

  const API_URL = "https://api-testnet.kurier.xyz/api/v1";

  const params = {
    proofType: "ultraplonk",
    vk: vk,
    proofOptions: {
      "numberOfPublicInputs": 1
    },
  };

  try{
    const res = await axios.post(
      `${API_URL}/register-vk/${process.env.API_KEY}`,
      params
    )
    console.log(res)
    fs.writeFileSync(
        path.join(process.cwd(), "public", "multiply", "vkey.json"),
        JSON.stringify(res.data)
      );
  }catch(error: any) {
    console.log(error.response)
    fs.writeFileSync(
        path.join(process.cwd(), "public", "multiply", "vkey.json"),
        JSON.stringify(error.response.data)
      );
  }
}

在 src/pages 下创建 components 子目录用于存放新组件，并在其中新建 proof.tsx。

下面细看 proof 组件。先从 react 引入 useState，从 bbjs 引入 UltraPlonkBackend，从 noir_js 引入 Noir。声明多个 state 维护应用状态，再编写 handleProofGeneration()，使用 UltraPlonkBackend.generateProof() 结合产物与输入生成 groth16 证明，然后调用之前的 Kurier 后端 API 验证并更新状态。return 中渲染所需 UI。

"use client";

import { useState } from "react";
import { UltraPlonkBackend } from "@aztec/bb.js";
import { abi, Noir } from "@noir-lang/noir_js";

export default function ProofComponent() {
  const [x, setX] = useState("");
  const [y, setY] = useState("");
  const [result, setResult] = useState("");

  const [isLoading, setIsLoading] = useState(false);
  const [proofResult, setProofResult] = useState(null);
  const [errorMsg, setErrorMsg] = useState("");
  const [verificationStatus, setVerificationStatus] = useState("");
  const [txHash, setTxHash] = useState<string | null>(null);

  const handleGenerateProof = async () => {
    setIsLoading(true);
    setProofResult(null);
    setErrorMsg("");
    setVerificationStatus("");
    setTxHash(null);

    try {
      const circuit_json = await fetch("/multiply/target/multiply.json");
      const noir_data = await circuit_json.json();

      const input = {
        x: x,
        y: y,
        z: result,
      };
      const noir = new Noir({
        bytecode: noir_data.bytecode,
        abi: noir_data.abi as any,
      });
      const execResult = await noir.execute(input);
      console.log("Witness Generated:", execResult);

      const plonk = new UltraPlonkBackend(noir_data.bytecode, { threads: 2 });
      const { proof, publicInputs } = await plonk.generateProof(
        execResult.witness
      );
      const vk = await plonk.getVerificationKey();

      setProofResult({
        proof: "0x" + Buffer.from(proof).toString("hex"),
        publicInputs,
      });

      //   Send to backend for verification
      const res = await fetch("/api/kurier", {
        method: "POST",
        headers: {
          "Content-Type": "application/json",
        },
        body: JSON.stringify({
          proof: proof,
          publicInputs: publicInputs,
          vk: Buffer.from(vk).toString("base64"),
        }),
      });

      const data = await res.json();

      if (res.ok) {
        setVerificationStatus("✅ Proof verified successfully!");
        if (data.txHash) {
          setTxHash(data.txHash);
        }
      } else {
        setVerificationStatus("❌ Proof verification failed.");
      }
    } catch (error) {
      console.error("Error generating proof or verifying:", error);
      setErrorMsg(
        "❌ Error generating or verifying proof. Please check your inputs and try again."
      );
    } finally {
      setIsLoading(false);
    }
  };

  return (
    <div className="flex flex-col items-center justify-center min-h-screen bg-gray-100 p-4">
      <h1 className="text-4xl font-bold mb-6">zkVerify Noir NextJS</h1>

      {/* Inputs */}
      <div className="flex flex-col space-y-4 w-64 mb-6">
        <input
          type="number"
          placeholder="Enter value x"
          value={x}
          onChange={(e) => setX(e.target.value)}
          className="px-4 py-2 rounded-lg border border-gray-300 focus:outline-none focus:ring-2 focus:ring-blue-500"
        />
        <input
          type="number"
          placeholder="Enter value y"
          value={y}
          onChange={(e) => setY(e.target.value)}
          className="px-4 py-2 rounded-lg border border-gray-300 focus:outline-none focus:ring-2 focus:ring-blue-500"
        />
        <input
          type="number"
          placeholder="Enter value x * y"
          value={result}
          onChange={(e) => setResult(e.target.value)}
          className="px-4 py-2 rounded-lg border border-gray-300 focus:outline-none focus:ring-2 focus:ring-blue-500"
        />
      </div>

      {/* Generate Proof Button */}
      <button
        onClick={handleGenerateProof}
        disabled={isLoading}
        className={`${
          isLoading
            ? "bg-gray-400 cursor-not-allowed"
            : "bg-green-600 hover:bg-green-700"
        } text-white font-semibold px-6 py-2 rounded-lg`}
      >
        {isLoading ? "Processing..." : "Generate Proof"}
      </button>

      {/* Loading */}
      {isLoading && (
        <div className="mt-6 text-blue-600 font-semibold">
          Working on it, please wait...
        </div>
      )}

      {/* Error Message */}
      {errorMsg && (
        <div className="mt-6 text-red-600 font-medium">{errorMsg}</div>
      )}

      {/* Verification Result */}
      {verificationStatus && (
        <div className="mt-4 text-lg font-medium text-blue-700">
          {verificationStatus}
        </div>
      )}

      {/* TX Hash */}
      {txHash && (
        <div className="mt-2 text-blue-800 underline">
          <a
            href={`https://zkverify-testnet.subscan.io/extrinsic/${txHash}`}
            target="_blank"
            rel="noopener noreferrer"
          >
            🔗 View on Subscan (txHash: {txHash.slice(0, 10)}...)
          </a>
        </div>
      )}

      {/* Output */}
      {proofResult && (
        <div className="mt-8 bg-white shadow-md p-4 rounded-lg w-full max-w-xl">
          <h2 className="text-xl font-bold mb-2 text-green-700">
            ✅ Proof Generated
          </h2>
          <pre className="text-sm overflow-x-auto whitespace-pre-wrap break-words">
            {JSON.stringify(proofResult, null, 2)}
          </pre>
        </div>
      )}
    </div>
  );
}

打开 index.tsx 引入 proof 组件，替换为：

import Image from "next/image";
import { Geist, Geist_Mono } from "next/font/google";
import ProofComponent from "./components/proof";

const geistSans = Geist({
  variable: "--font-geist-sans",
  subsets: ["latin"],
});

const geistMono = Geist_Mono({
  variable: "--font-geist-mono",
  subsets: ["latin"],
});

export default function Home() {
  return (
    <>
      <ProofComponent />
    </>
  );
}

至此 NextJS 应用已就绪，运行：

npm run dev

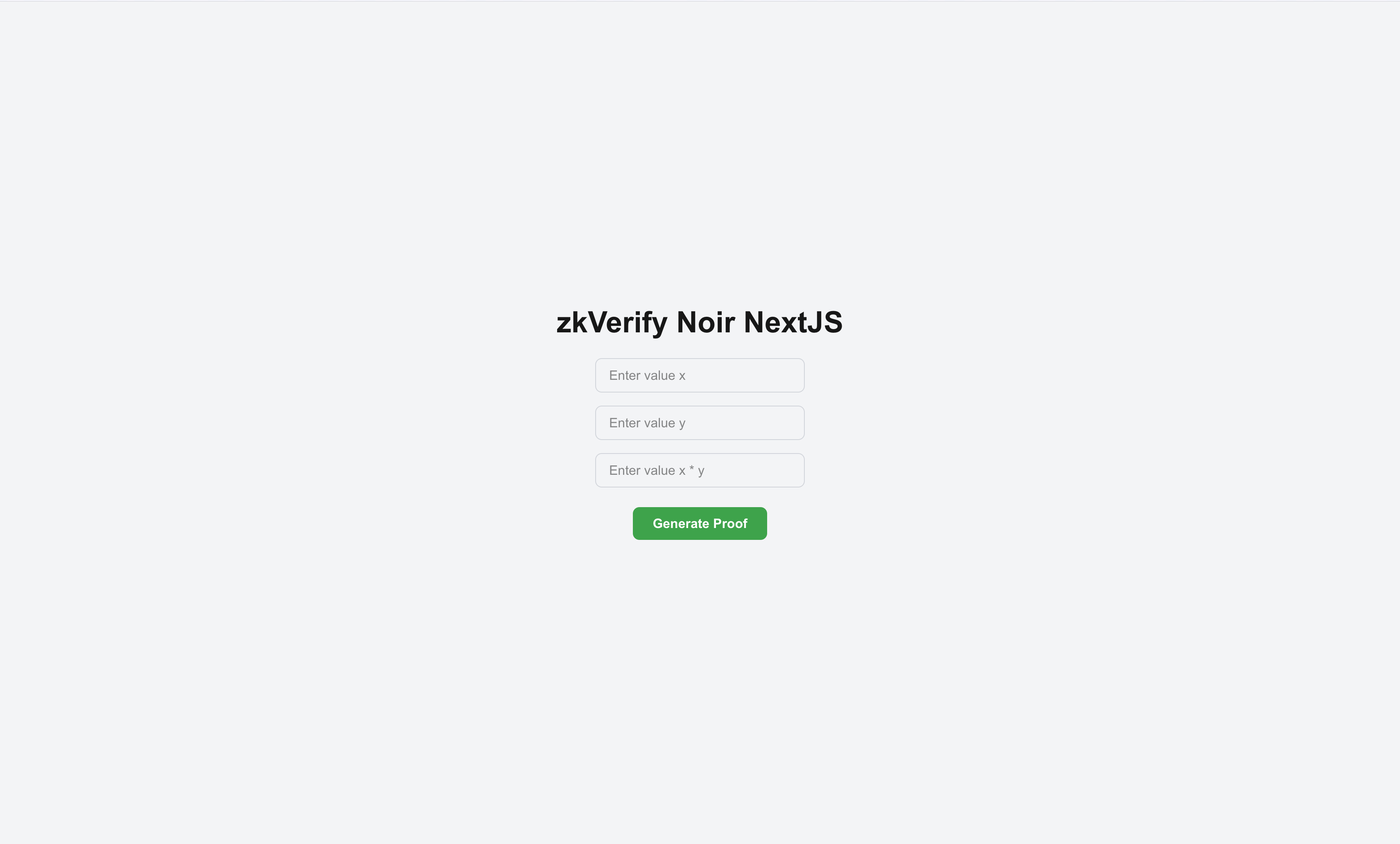

在终端提供的地址访问，界面如下：

输入任意 x、y、result（满足 result = x*y），点击 Generate Proof，生成后显示在按钮下方：

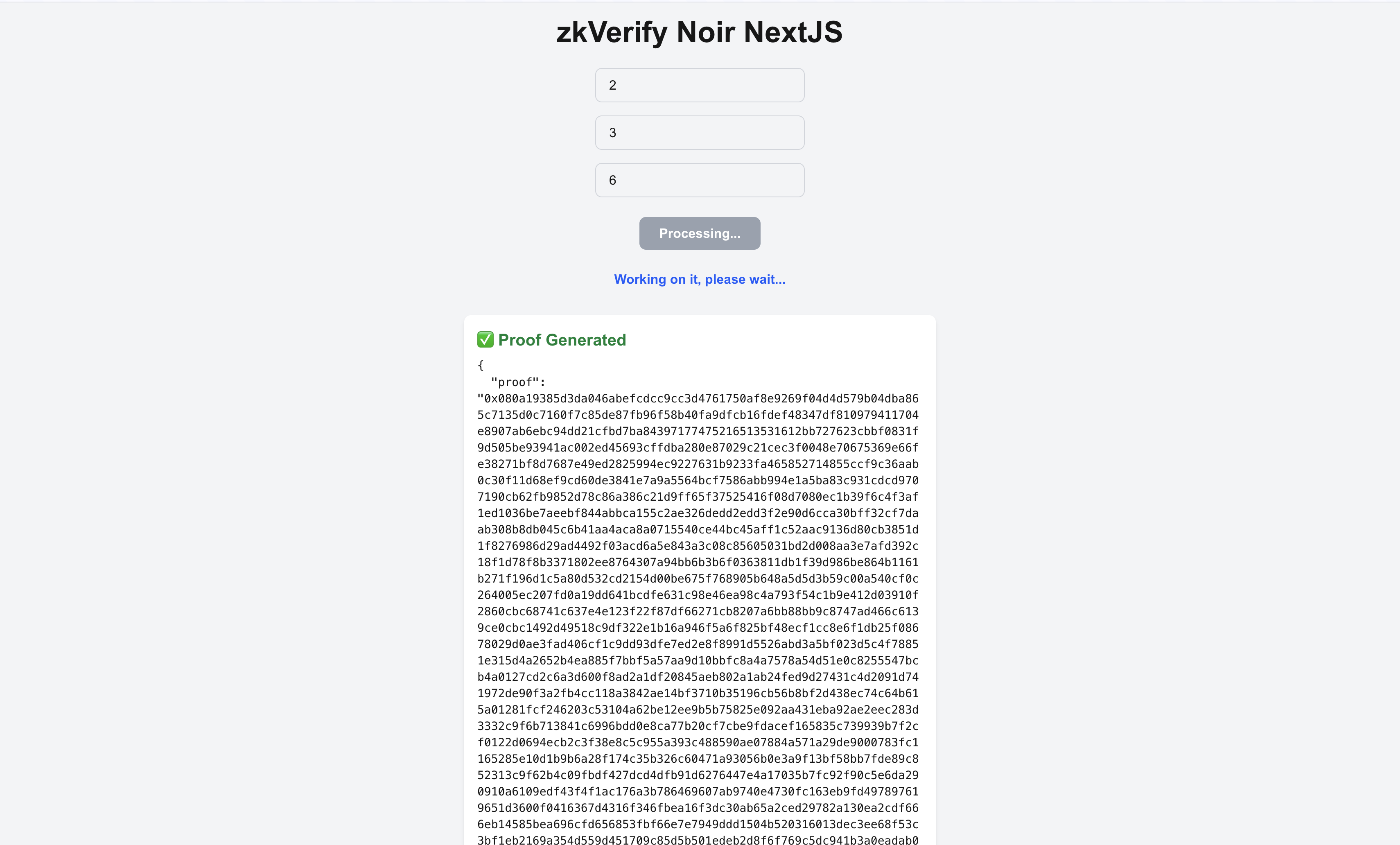

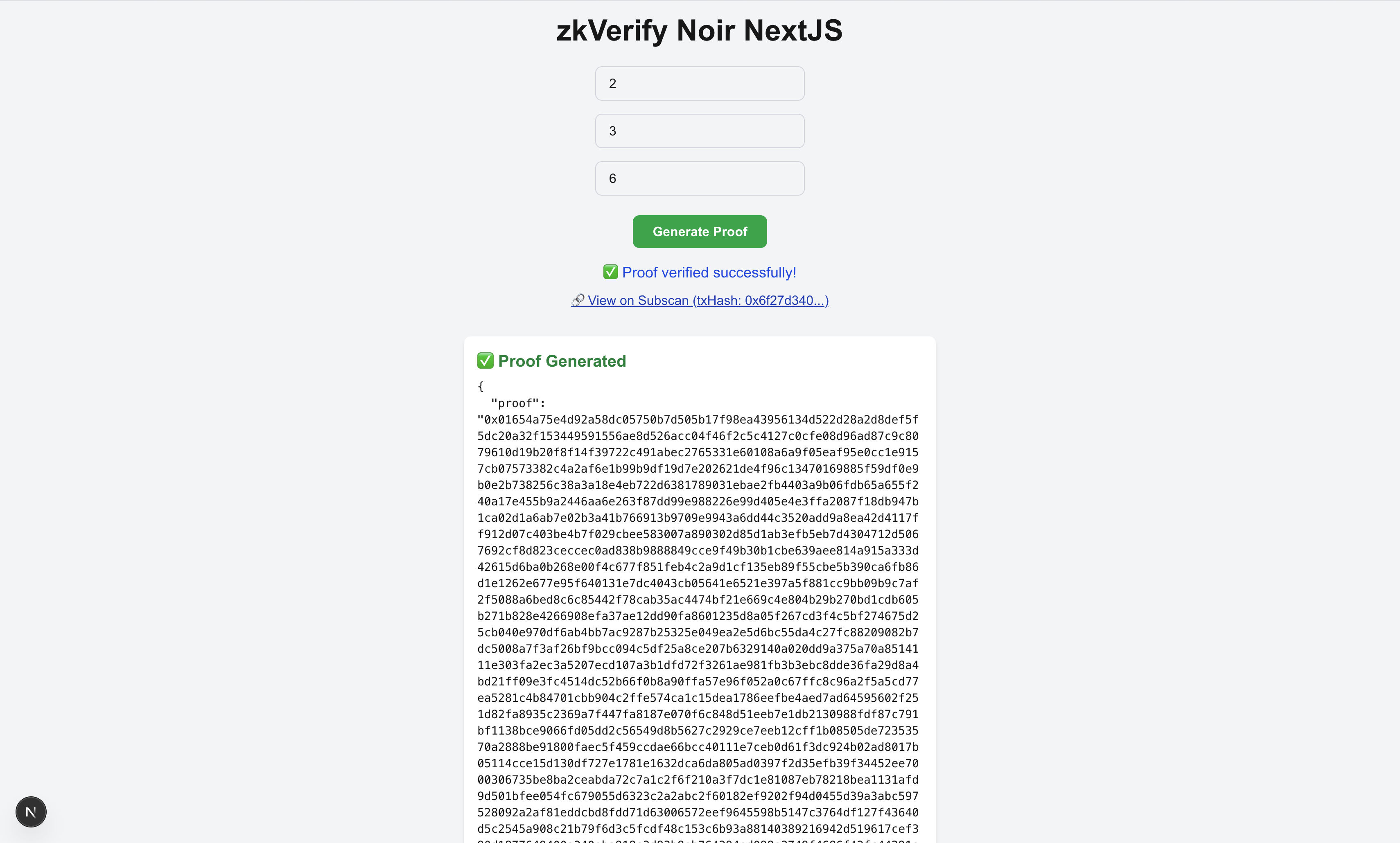

生成后会自动通过 Kurier 提交验证并显示 “working on it”。验证通过后会返回 txHash，可点击在 Explorer 查看。
